Swing Arm Corners

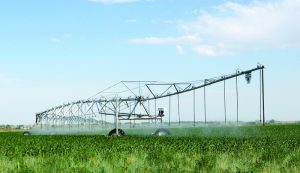

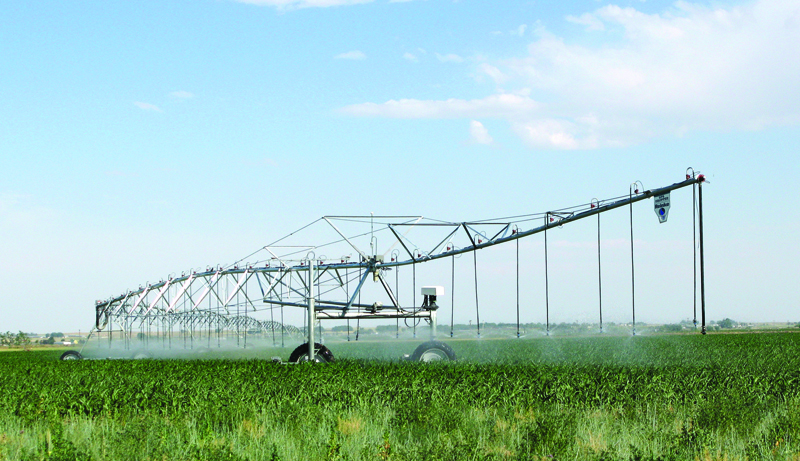

swing-arm-corner-gps-reinke-aci-adam-kernsThe Swing Arm Corner System (SAC) lets you get more irrigated acres without buying more land or setting up a new water system. Our exclusive swing span design provides uniform application of water and chemicals and can be retrofitted on existing Reinke systems or on many competitor systems.

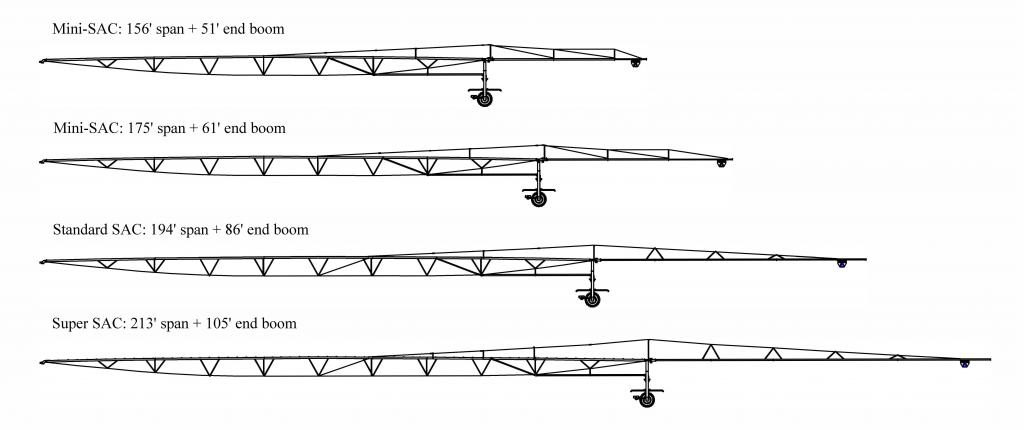

The SAC allows operators to change the orientation to either a “leading” or “following” position to increase the number of irrigated acres in part circle applications. Reinke offers the following Swing Arm Corner sizes:

  • Mini-SAC: Featuring a 156′ span and 51′ end boom. Provides 207′ of coverage (approximatley 297′ with end gun)
  • Mini-SAC: Featuring a 175′ span and 61′ end boom. Provides 236′ of coverage (approximately 326′ with end gun)
  • Standard  SAC: Featuring a 194′ span and 86′ end boom. Provides 280′ of coverage (approximately 370′ with end gun)
  • Super SAC: Featuring a 213′ span and 105′ end boom. Provides 318′ of coverage (approximately 408′ with end gun)

swing-arm-corner-sizes-reinke-aci-adam-kerns

Options

  • Navigator GPS – with Real Time Kinematic (RTK) surveyor-grade equipment, the Navigator series of GPS controls provides extreme accuracy in timing and application
  • Accu-Corner – Assures even, accurate application throughout the corner. Minimizes over/under watering: Programmable logic controller, 12 groups of sprinklers and up to 61 programmable stages, Unique operator interface. NOTE: The Accu-Corner is not available with the Mini-SAC offerings.
  • Exclusive Patented Energy Saver Package (ESP) – Utilizes an extra sprinkler package with automatic valves to supply additional water, instead of needless pressure during the retraction cycle of the swing arm corner. Save hundreds of dollars every season with each system revolution. See chart:

Diesel Fuel Cost Savings with ESP

1000 GPM Pumping Unit Without ESP  With ESP
  System GPM Extended/Retracted   1,000/590   850/850
  System GPM Transition Phase   590-1,000   660-1,010
  GPM/ Acre   4.7   5.6
  Hours to Apply 1″   96.1   86.9
  Pumping Depth (feet)   120   120
  Horsepower Hours to Apply 1″   6,609   5,935
  Diesel Fuel Cost to Apply 1″   $1,212.40   $1,089.20

(Annual savings based on 12″ per year: $1,478.40. Assuming diesel fuel at $3.50 per gallon and consumption at .36 LB/HP*HR)
